Road Roller Brad：XCMG
Road Roller Type：Vibratory Road Rolle
Road Roller Model：XS183, XS203,XS223,XS26
Operating weight：22 ton
Road Roller is suitable to the compaction operation of pebbles,sandy soils,moraine soil,blasting rock and clayey soil,as well as the compaction of concrete and stabilized soil base materials in various large projects. lt is the ideal compaction equipment for the construction of high-grade highways,air-ports,harbors,dams and industrial construc- tion sites.
|
Description |
Unit |
Parameter value |
|
Road Roller Model |
|

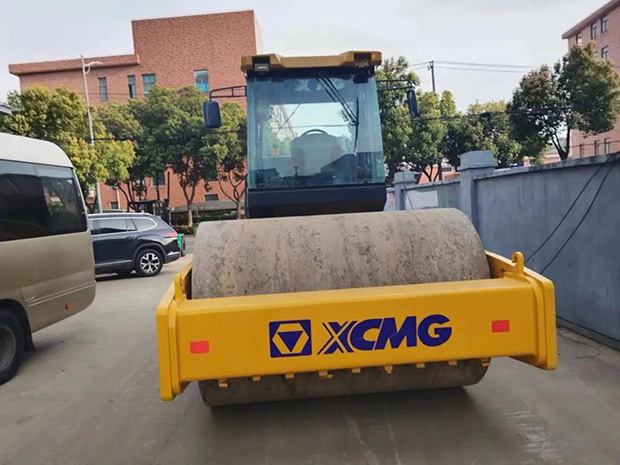

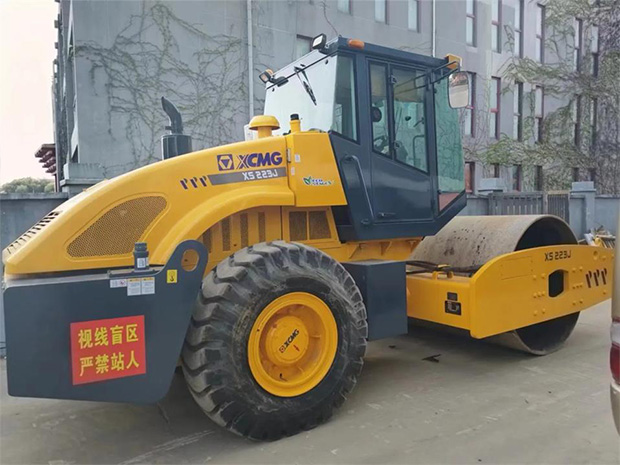

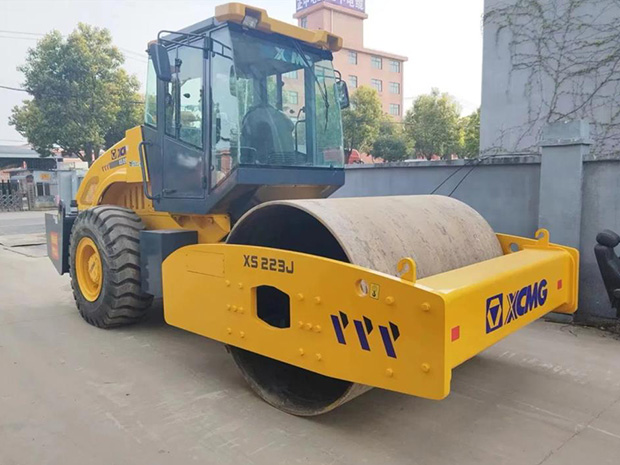

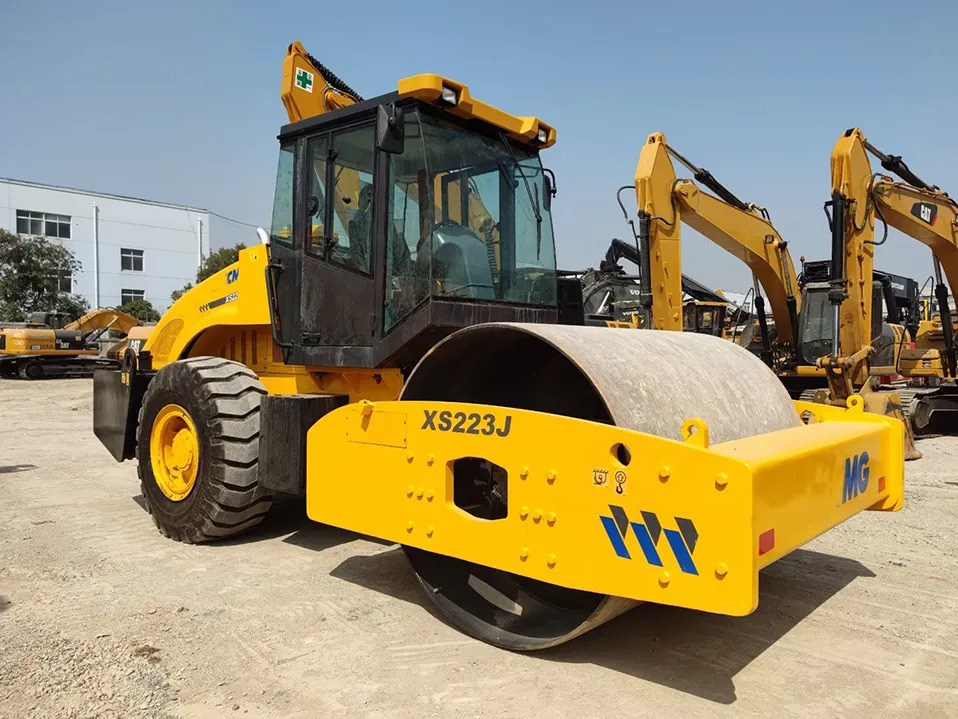

XCMG XS223J Road Roller |
|
Operating weight |
Ton |
22 |
|
Load applied on front drum |
Kg |
11000 |
|
Nominal amplitude |
mm |
1.86/0.93 |
|
Drum width |
mm |
2130 |
|
Drum diameter |
mm |
1600 |
|
Engine rated power |
kW/(r/min) |
136/1800 |
|
Vibration frequency |
HZ |
33/28 |
|
Exciting force |
kN |
374/290 |
|
Overall dimensions (L×W×H) |
mm |
6128×2350×3160 |
|
Fuel tank capacity |
L |
310 |
