Crane Type：Telescopic Boom Crane
Crane Jib：Five-Arm
Main boom length：42.5m
Max. Lifting Height ：58.5 m

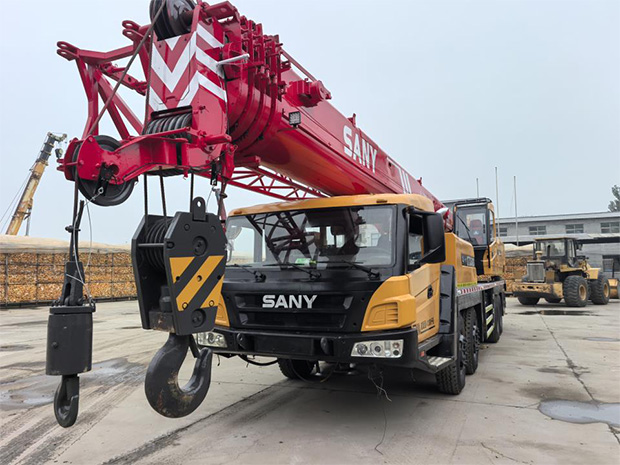

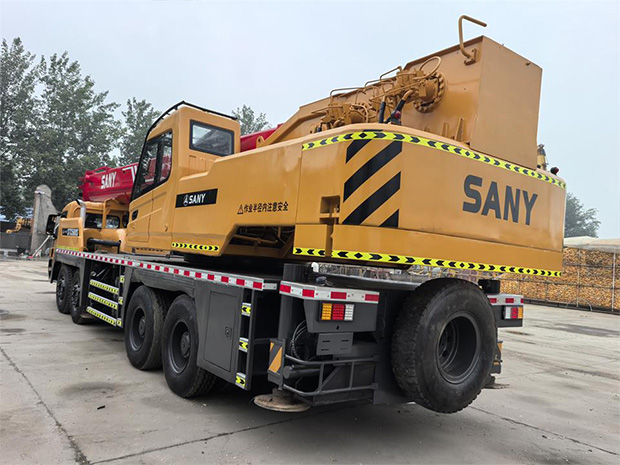

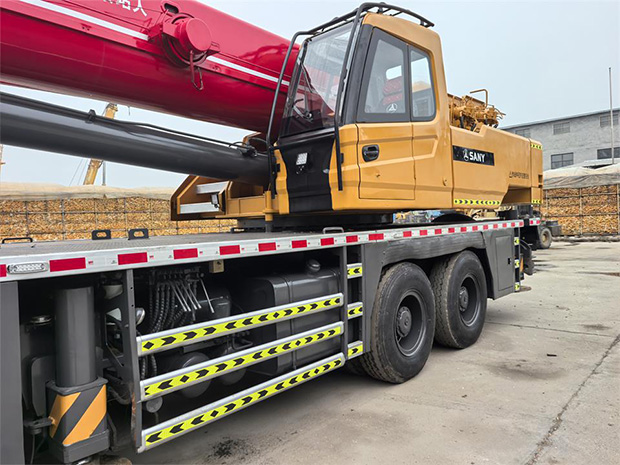

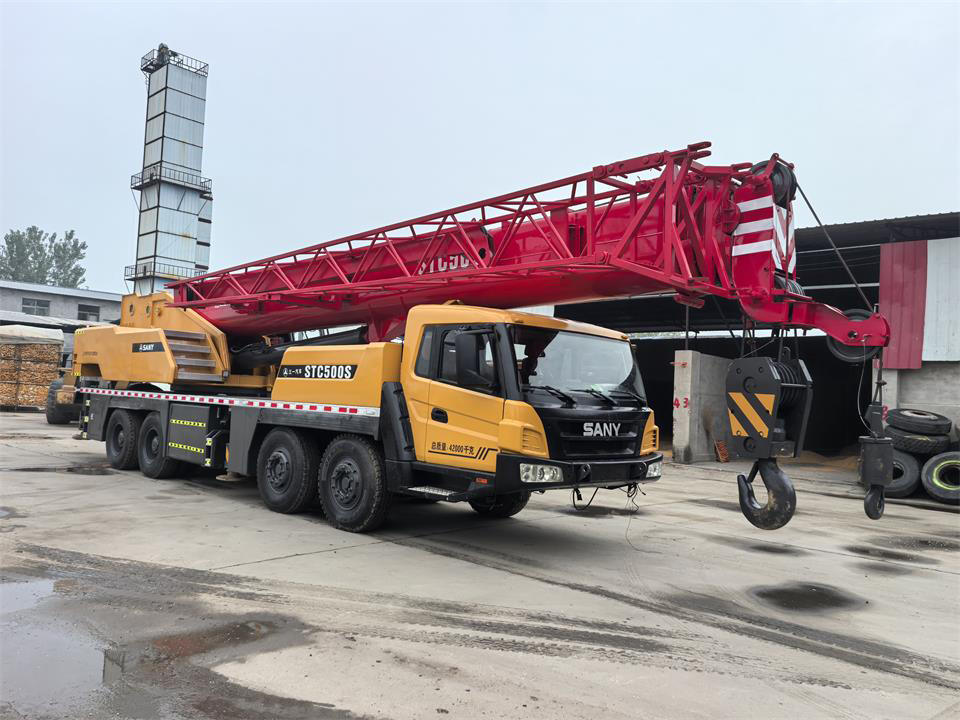

SANY 50ton Crane is a versatile truck-mounted crane designed for medium to heavy-duty lifting applications. Engineered with a robust build and advanced control systems, SANY 50ton crane offers a combination of power, precision, and safety. With its high lifting capacity, this crane is suitable for a variety of construction and industrial projects. The STC500 is equipped with a powerful engine that meets stringent emission standards, ensuring efficient performance with minimal environmental impact.
| Description | Unit | Parameter value |
| Max.rated lifting capacity | Ton | 50 |
| Max. lifting torque | kN.m | 1560 |
| Base Boom Length | m | 11.4 |
| Fully extended boom | 42.5 | |
| Fully extended boom + Jib | 58.5 | |
| Overall dimensions (L×W×H) | mm | 13750 × 2750 × 3800 |
| Engine rated power | kW/(r/min) | 250/2100 |
| Max. travel speed | km/h | 80 |
| Counter weight | ton | 6.8 |
| Total weight in travel | kg | 42000 |
| Outrigger span(Longitudinal × horizontal) | m | 6.0 × 7.2 |
