Crane Type：Telescopic Boom Crane
Crane Jib：Five-Arm
Main boom length：40 m
Max. Lifting Height ：50.2 m

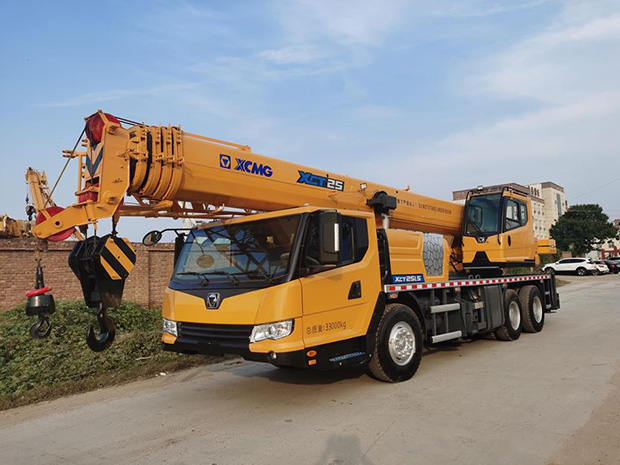

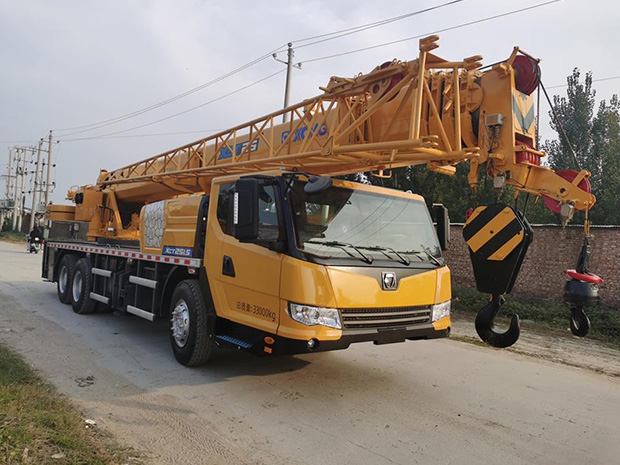

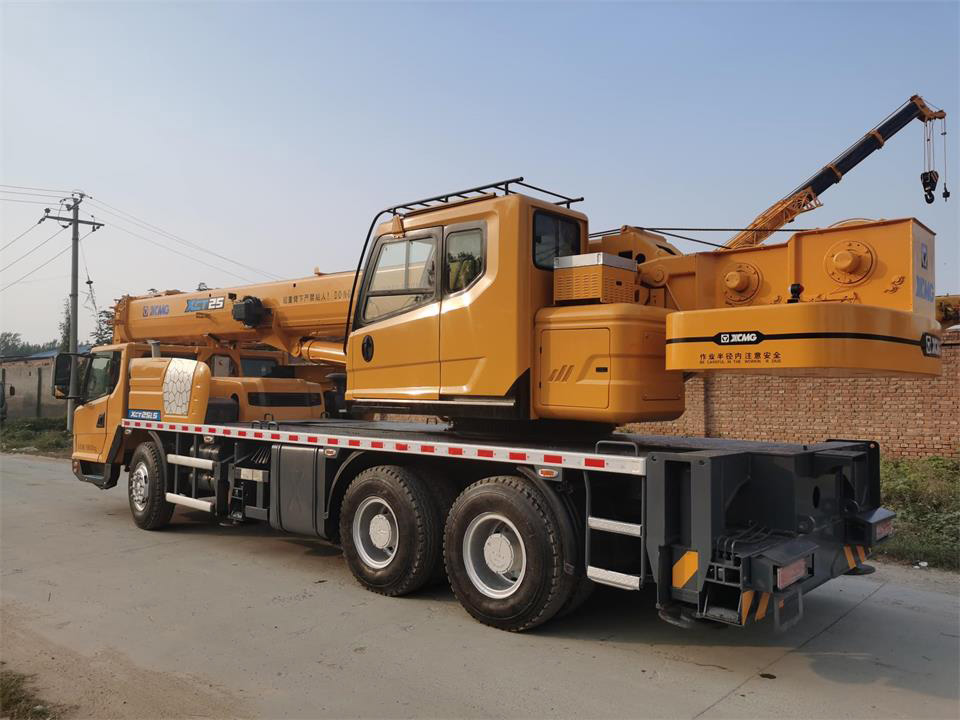

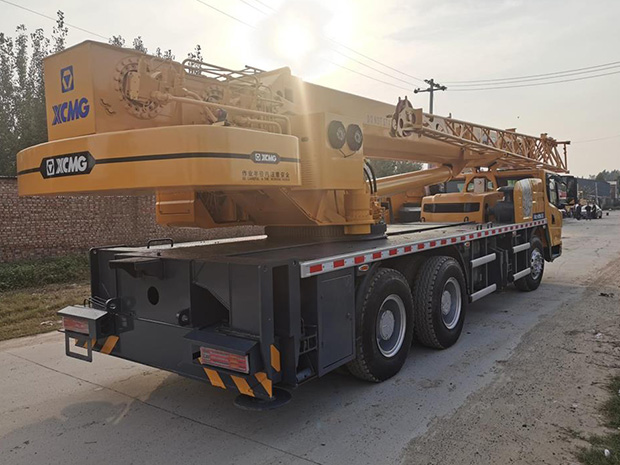

XCMG XCT25L5 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments. 5-section boom of 41 m with U-type profile is adopted; the max. lifting load is 25 t; the max. lifting height is 50.2 m; the max. working radius is 38.5 m; The performance takes the lead comprehensively. Innovative single-plate boom head and compact boom tail structure, best overlapping ratio in its class and stronger boom load-bearing capacity.
| Description | Unit | Parameter value |
| Max.rated lifting capacity | Ton | 25 |
| Max. lifting torque | kN.m | 1132 |
| Base Boom Length | m | 10.2 |
| Fully extended boom | 40 | |
| Fully extended boom + Jib | 50.2 | |
| Overall dimensions (L×W×H) | mm | 12320×2500×3380 |
| Engine rated power | kW/(r/min) | 275/2200 |
| Max. travel speed | km/h | 80 |
| Total weight in travel | kg | 32000 |
| Outrigger span(Longitudinal × horizontal) | m | 5.65×6.4 |
