Crane Brand：XCMG
Crane Type：All Terrain Crane
Main boom length：58 m
Counter weight：38 Ton

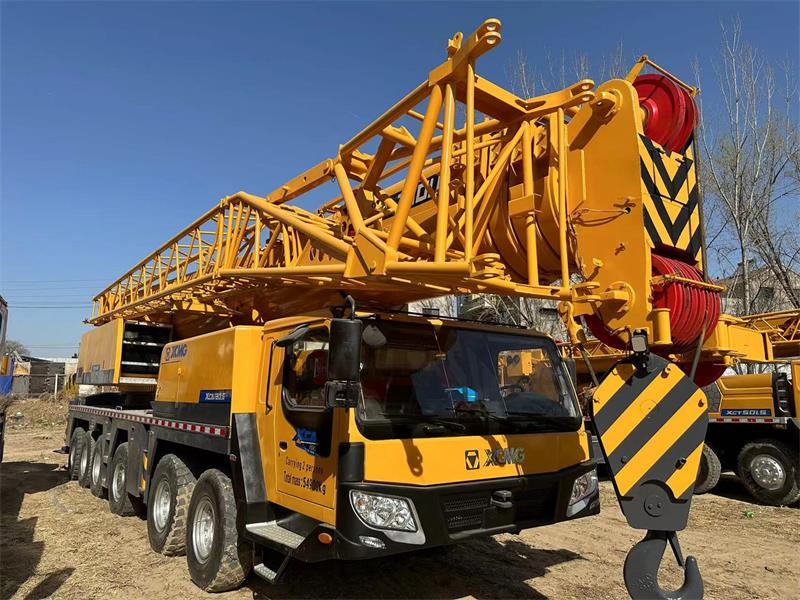

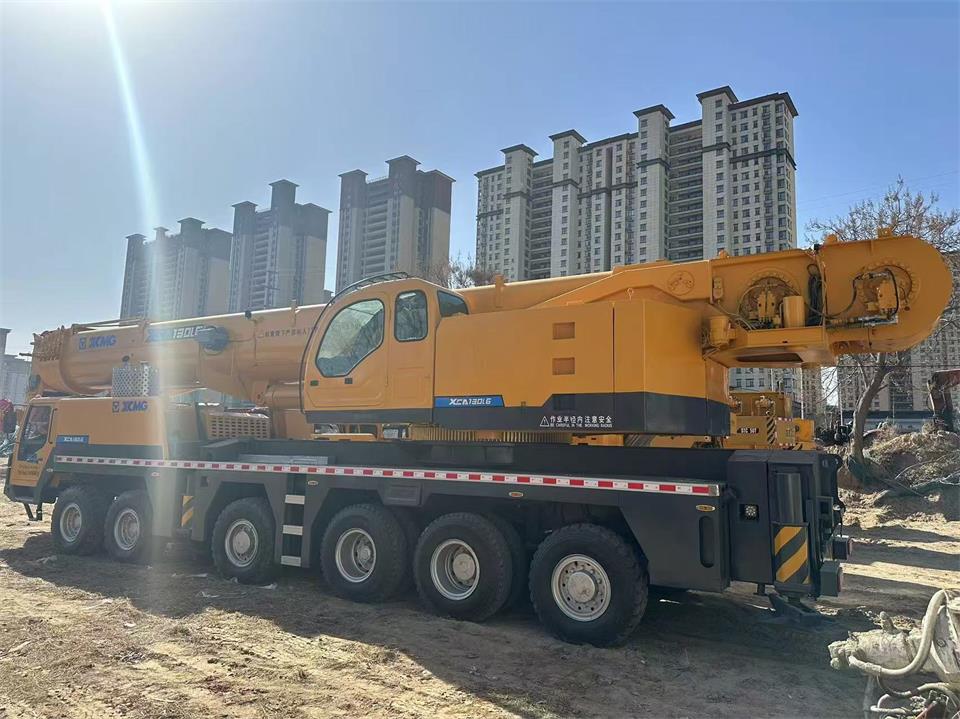

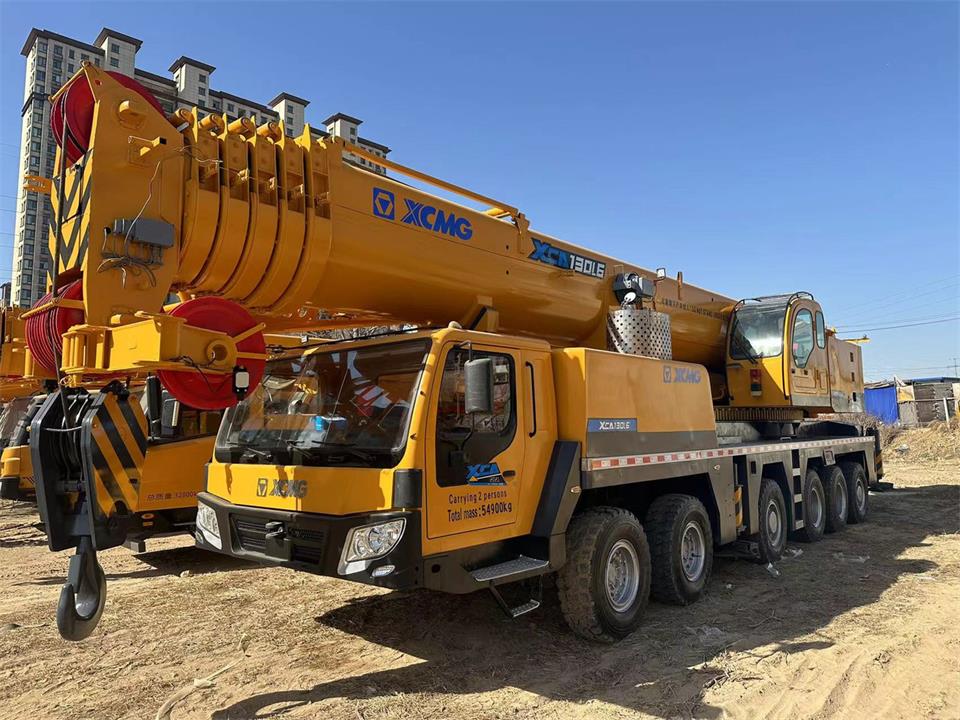

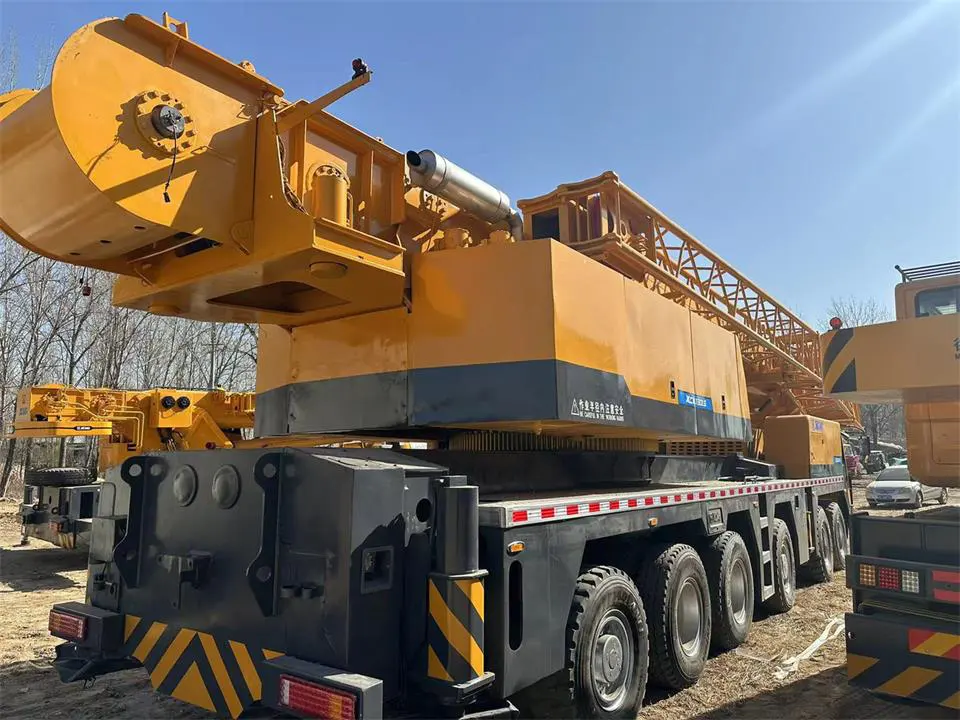

XCMG QY130K 130ton all terrain crane, crafted by XCMG Group, showcases superior lifting performance with a maximum rated total lifting capacity of 130 tons and a maximum rated lifting moment of 5003 kN·m for basic boom operations. The Crane extends up to 58 meters in height with its main boom and reaches up to 86 meters with the main and auxiliary booms combined. The crane’s winch systems provide a swift line speed of 115 m/min for both main and auxiliary winches, ensuring efficient lift operations.
| Description | Unit | Parameter value |
| Max.rated lifting capacity | Ton | 130 |
| Max. lifting torque | kN.m | 5003 |
| Base Boom Length | m | 13 |
| Fully extended boom | 58 | |
| Fully extended boom + Jib | 86 | |
| Overall dimensions (L×W×H) | mm | 14950×3000×3950 |
| Engine rated power | kW/(r/min) | 162/2100 |
| Max. travel speed | km/h | 70 |
| Counter weight | Ton | 38 |
| Total weight in travel | kg | 62000 |
| Outrigger span(Longitudinal × horizontal) | m | 7.56×7.6 |
