Crane Brand：XCMG
Main boom length：42.7m
Counter weight：6 Ton
Working Hours：4001-5000

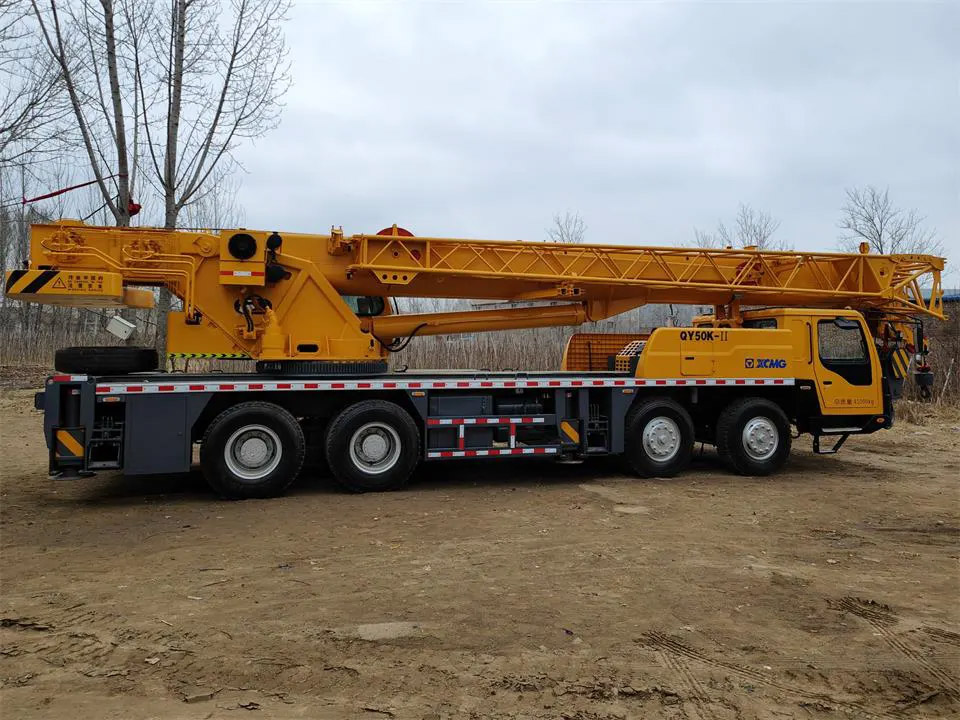

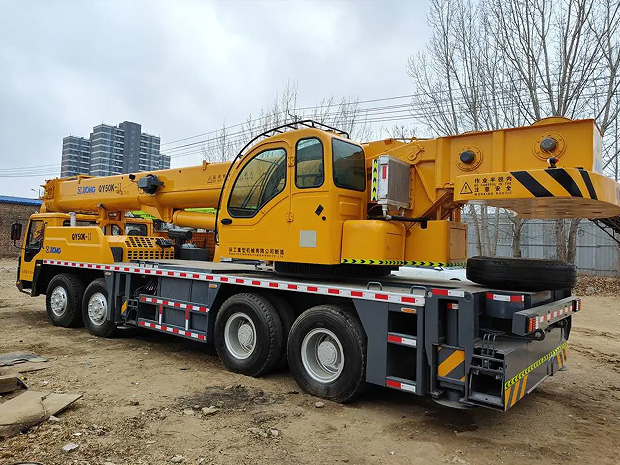

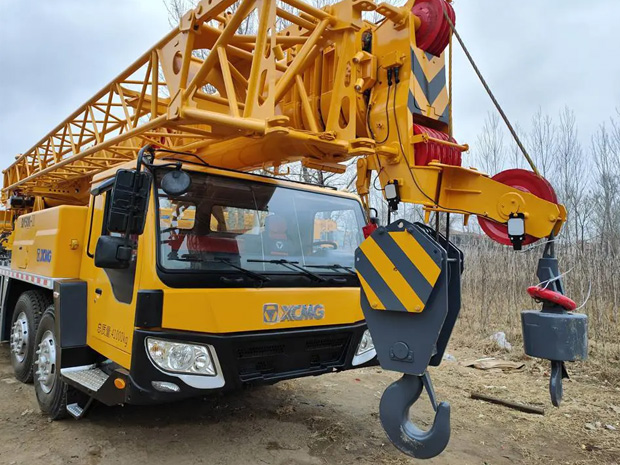

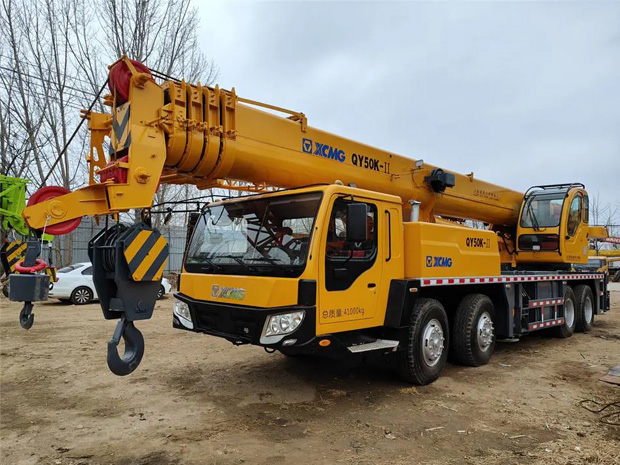

Used XCMG 50Ton mobile crane’s structure is compact, the industry operating performance is the highest. Lifting performance and driving performance of a comprehensive upgrade, leading competitors. Dual-pump confluence technology, operating efficiency of a comprehensive lead.
Used XCMG crane 50ton of boom length is 11.5m with strong lifting performance, leading 5%-10% ahead of products with the same tonnages in the same industry. High-power engine with good dynamic performance, strong gradeability and superior trafficability. The maximum gradeability and maximum travel speed respectively are 42% and 85km/h.
| Description | Unit | Parameter value |
| Max.rated lifting capacity | Ton | 50 |
| Max. lifting torque | kN.m | 1560 |
| Base Boom Length | m | 11.4 |
| Fully extended boom | 42.7 | |
| Fully extended boom + Jib | 57.7 | |
| Overall dimensions (L×W×H) | mm | 13700×2800×3570 |
| Engine rated power | kW/(r/min) | 275/2200 |
| Max. travel speed | km/h | 80 |
| Counter weight | ton | 6 |
| Total weight in travel | kg | 42000 |
| Outrigger span(Longitudinal × horizontal) | m | 5.91×6.9 |
